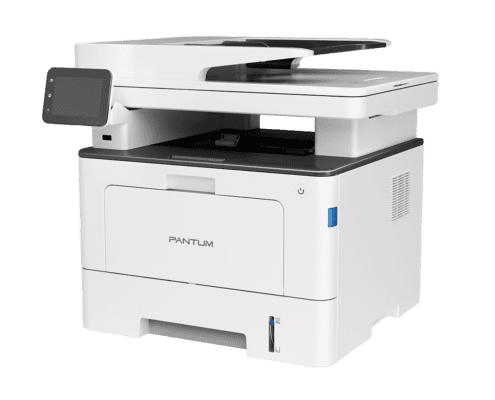

Pantum BM5100FDW

Pantum BM5100FDW

A4 Mono Multifunction Laser Printer

Printing speed: 40 ppm
Control panel: 3.5 inch touchscreen
Functions: Copy, Print, Scan
Connectivity: USB + Network + WIFI + NFC
Resolution: 1200×1200 dpi
Duplex Mode: Automatic
Paper input: 250 + 60
Memory: 512 MB
Toner Cartridge: 3,000, 6,000, 15,000 Pages
Monthly Duty Cycle: 100,000 pages
Scan To: E‑mail, PC, FTP, USB, iOS/Android

Extraordinary Office Assistant, Offering Excellent Printing Experience

Special functions：

3.5-inch touch screen, One step driver installation
2*550 pages optional paper tray
Optional 15,000 pages toner cartridge
One pass two side scanning
USB disk direct printing
Confidential printing
Dual-band WiFi(2.4G/5G) support

Pantum BM5100FDW-2

Specifications

PRINTING

Print Speed	40ppm(A4)/42ppm(Letter)
First Print out time	≤6.9s
Recommended monthly page volume	750 to 4,000 pages
Monthly Duty Cycle(1)	100,000 Pages
Printer language	PCL5e、PCL6、PS
Processor speed	1.2 GHz
Memory	512 MB
Control panel	3.5 inch touch screen
Auto Duplex print	Yes
Duplex print speed	20spm（A4）/21spm（Letter）
Duplex print support paper size	A4LetterLegalFolioOficio
Other printing functions	Booklet printing、Secure printing 、USB disk printing; Support AirPrint, Mopria, mobile APP(iOS APP/Android APP)
NFC function	Yes

COPYING

SCANNING

FAX

PAPER HANDLING

Paper input tray	250 Pages
Optional input paper tray	PT-511H，550 Pages(Maximum:2)
Multipurpose tray	60 Pages
Maximum paper input capacity	1410 Pages
Paper output tray	150 Pages
Media types	Paper(plain, thick, thin,recycled),Transparency, Cardstock, Label, Envelope(4)
Media sizes	A4, A5, JIS B5, IS0 B5, A6, Letter, Legal, Executive, Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6， Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Media weight	Input tray：60-120g/㎡；Multipurpose tray：60-200g/㎡；Optional tray：60-120g/㎡

OTHER

*Dimensions (wdh)*	415365370 mm
Product Weight(with cartridge)	12.5kg
Package size(W×D×H)	559444488 mm
Package Weight(with cartridge)	14.7kg
Operating temperature range	Recommended temperature: 10～32℃ ；Humidity range：20% ～ 80%
Input voltage	110V：AC100-127V, 50/60Hz,14A ；220V：AC220-240V, 50/60Hz，7A
Noise	Ready≤30dB(A) ；Print≤54dB(A) ；scan≤54dB(A) ；copy≤57dB(A)
Power consumption	Print average：≤650W ；Ready：≤60W； Sleep：≤1W
Operating system compatibility	Microsoft Windows： Server2008 / Server2012 / Server2016 /XP/Vista/Win7 /Win8/Win8.1/Win10/Win11（32/64 Bit）； Mac OS：10.8 / 10.9 / 10.10 / 10.11 / 10.12 / 10.13 / 10.14 / 10.15 / 11 / 12； Linux： Ubuntu 14.04/16.04/18.04 /Debian 10.0/Centos 7（32/64 Bit）； Astra Linux Special Edition V1.6/Redhat 8.0/ Centos 8.2(64 Bit)
Interface	High-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx; WiFi(2.4G/5G):IEEE 802.11a/b/g/n

CONSUMABLES

Cartridge style	Toner Cartridge & Drum Unit
Starter cartridge(2)	TL-5120: 3000 Pages
Starter drum unit(3)	DL-5120: 30000 Pages
Standard cartridge(2)	TL-5120: 3000 Pages ；TL-5120H: 6000 Pages ；TL-5120X: 15000 Pages
Standard drum unit (3)	DL-5120: 30000 Pages

Note

(1)	Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Pantum laser printer devices, and does not refer to actual maximum image output per month.
(2)	Toner capacity is based on ISO 19752.
(3)	Drum unit lifetime is based on 3 average letter/A4-size pages per print job and 5% coverage,actual lifetime affected by different printing habits and printing environment.
(4)	When you print envelopes, please set the printing paper type to envelopes, and open the rear cover of the device and pull down the two blue handles according to the prompts popped up by the driver, and put the envelopes into the multipurpose feeder to get the best envelopes print effect.
