Giesecke+Devrient BPS® C2

Banknote Processing System

Greater ease of use: Intelligent software architecture ensures a simple and intuitive operation
Greater productivity: The consistently high speed of 1,050 BN/min when counting, sorting, authenticating or reading serial numbers (not available in all regions)
Greater security: Ultimate top-class sensors – fast, reliable and precise
Greater future viability: Numerous possible interfaces allow the BPS^® C2 systems to integrate perfectly into the respective system landscape. Cutting-edge tools, applications, and web services allow even more efficient and cost-effective processes.

Within the compact table-top segment the BPS^® C2 product family offers superior productivity, utmost security, and a compact, attractive design with a very high level of user-friendliness. In addition, a choice of three variants – as well as a wide range of configurations – enables the systems to fulfill specific requirements that will take the efficiency of your cash process to a completely new level.

Whether you use them in a cash center, a casino or the back office of a bank branch, find out which BPS^® C2 system is the best choice for increasing your productivity and preparing you for future challenges in banknote processing.

With a new generation of sensors, G+D is setting new benchmarks in the class of compact table-top systems. The high throughput of the BPS^® C2 means that productivity can be increased considerably. The use of state-of-the-art technologies and G+D´s many years of experience in the tabletop sector make all the difference, Discover the foundations for sustainable competitiveness, today as well as in the future.

One platform – numerous advantages

The new BPS^® C2 family is a platform from which you can choose precisely the system you need – tailored to the required application, and optimized for your business. Each system combines precision with consistent speed – during counting, sorting, authentication, and even when reading serial numbers.

Outstanding performance meets compact size

The BPS^® C2-2 offers efficiency in its most compact form. Two output compartments offer an array of options for sorting, such as by denomination, orientation, or fitness and if needed tickets for casino application. What’s more, the best sensors in their class guarantee maximum reliability for authentication and fitness detection. This makes the BPS^® C2-2 the go-to choice for top performance and a high degree of variability for commercial banks, retailers, cash-in-transit companies and casinos.

For its excellent product design and unparalleled user-friendliness the BPS^® C2-2 was honored with the German Design Award 2018.

Banknote processing system BPS® C2-2, with the label of the German Design Award 2018

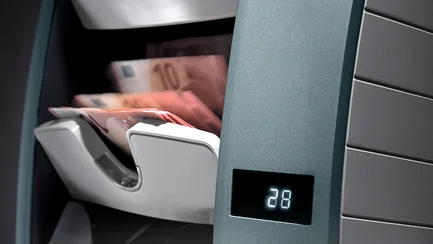

Output trays, control panel and digital display of the BPS® C2-2

Outstanding performance – advanced flexibility

With three output compartments and one reject compartment, the BPS^® C2-3 offers numerous individual sorting options by denomination, by orientation and by fitness. It also processes TITO tickets for casino applications. Consistent high speed of 1,050 banknotes per minute ensures superior productivity and best-in-class sensors guarantee maximum reliability during authentication, fitness detection, and even reading serial numbers. Thanks to its small footprint (33 x 43 cm), the BPS^® C2-3 can also be used where space is very limited.

Outstanding performance – maximum flexibility

The BPS^® C2-4 is the benchmark for compact table-top systems. It has four output compartments and one reject compartment to offer a superior variety of individual sorting options by denomination, by orientation or by fitness, and if needed, TITO tickets for casino applications. The speed of 1,050 banknotes per minute is available in all operation modes. Bottom line: the BPS^® C2-4 is the ideal choice for commercial banks, cash-in-transit companies, and casinos that seek to combine peak performance with ultimate flexibility.

Specifications

BPS® C2-2

Speed: 1,050 BN/min

BN formats (length x width): 100~181 × 60~85 mm

Currencies:
• Multi-currency: up to 60 currencies
• Mixed currency: up to 10 currencies

Singler capacity: (depending on BN quality) up to 900 BN

Output compartment capacity: (depending on BN quality) up to 250 BN

Reject compartment capacity: (depending on BN quality) up to 100 BN

Dimensions (H x W x D): 52 × 33 × 43 cm

Weight: ~28 kg

Temperature range: 15°C~35°C

Electrical specifications: 100~240 V, 50/60 Hz

External connections: 1 x LAN, 4x USB host, 1 x USB device

Certificates: CE, GS, CB

BPS® C2-3

Speed: 1,050 BN/min

BN formats (length x width): 100~181 × 60~85 mm

Currencies:
• Multi-currency: up to 60 currencies
• Mixed currency: up to 10 currencies

Singler capacity: (depending on BN quality) up to 900 BN

Output compartment capacity: (depending on BN quality) up to 250 BN

Reject compartment capacity: (depending on BN quality) up to 100 BN

Dimensions (H x W x D): 62 × 33 × 43 cm

Weight: ~32 kg

Temperature range: 15°C~35°C

Electrical specifications: 100~240 V, 50/60 Hz

External connections: 1 × LAN, 4 × USB host, 1 × USB device

Certificates: CE

BPS® C2-4

Speed: 1,050 BN/min

BN formats (length x width): 100~181 × 60~85 mm

Currencies:
• Multi-currency: up to 60 currencies
• Mixed currency: up to 10 currencies

Singler capacity: (depending on BN quality) up to 900 BN

Output compartment capacity: (depending on BN quality) up to 250 BN

Reject compartment capacity: (depending on BN quality) up to 100 BN

Dimensions (H x W x D): 74 × 33 × 43 cm

Weight: ~36 kg

Temperature range: 15°C~35°C

Electrical specifications: 100~240 V, 50/60 Hz

External connections: 1 × LAN, 2 × USB host, 1 × USB device

Certificates: CE
